Palfinger Marine Norway AS OS, Norway
Palfinger Marine Norway AS

NDM has over 30 years of experience as a marine winch manufacturer, specializing in deck machinery. The winches are suitable for all kinds of vessels such as: Tankers, Dry cargo ships, Passenger ships, Ferries, Workboats, Offshore vessels, Fishing vessels, Naval vessels All winches are offered high pressure hydraulic and electric drive. The hydraulic driven winches can be supplied with complete hydraulic power packs. NDM delivery program: -ANCHOR WINDLASS WINCHES -CHAIN STOPPERS -TOWING WINCHES -TUGGER WINCHES -MOORING WINCHES -CARGO SECURING WINCHES -STORAGE WINCHES -CAPSTANS -TRANSPONDER WINCHES -ANCHOR HANDLING WINCHES -SPOOLING WINCHES -UMBILICAL WINCHES -HOSE REEL WINCHES -SPECIAL WINCHES -WINCH CONTROL SYSTEMS



Presentation: www.ndm.equip4ship.com

Address: Norway, OS, 5210 Ulvenvegen 34

Contact person: Commercial department ,e-mail, website

Phone: Available only for subscription

Fax: Available only for subscription



Catalogue of products (5)
Send enquiry

unselect all/select all You have 0 products selected
Spooling winches Send enquiry

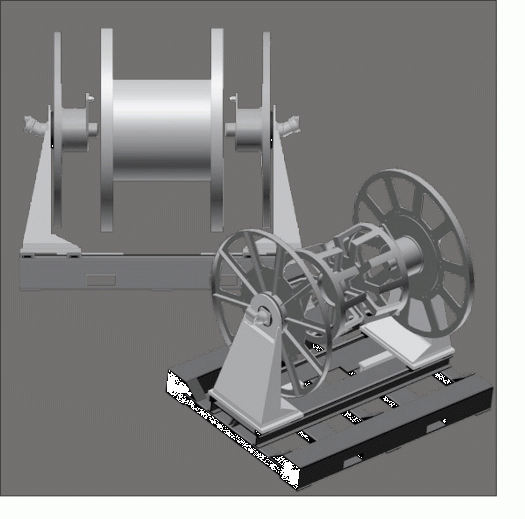

Spooling winches
-Drive:electric or hydraulic.
-Configuration: Single drum.
-Drum: Steel wire rope drum.
-Rated pull: 1500 kg or after customers request.
-Wire speed: Up to 30 m/min or after customers request.
-Control: Local and/or remote control.


Chain stoppers Send enquiry
Chain stoppers
-Roller type
-Designed to withstand 80% of the chain breaking force
-With lashing arrangement.
-Manually operated.


Anchor windlass winches Send enquiry
Anchor windlass winches
-Drive Electric/HP Hydraulic; Rated pull 5-30t; -Configuration Single/double; Chain 16-160mm; Clutch Manually operated; Manually operated band brake; Control: local or remote.
Options:
-Auto tension control.
-With/without mooring drum/warp


Capstans Send enquiry
Capstans
Electric or HP hydraulic drive; Configuration: Vertically mounted; Warping head made of cast steel; Rated pull 1st. Layer: 3-20 tonnes; Maximum speed: up to 20m/min; Local and/or remote control.


Tugger winches Send enquiry
Tugger winches
Electric/hydraulic
-Single or double drum with/without warping end Wire drum
-Steel wire rope drum
-pull 5-30t
-Brake holding 1.5 x the ratet pull (static, first layer)
-Wire speed 20 m/min
-Clutch Manually operatet
- Local and/or remote
