Huaian Ace Star International Trading Co., Ltd is highly specialized in the field of industrial machinery products. Our main products are marine deck machinery products and industrial large-scale hard gear boxes. Deck machinery products include all kinds of electric or hydraulic winches, windlasses, capstans and large-scale hydraulic and electric cranes. All products are approved by international classification societies like CCS, ABS, LGD, BV, etc. Industrial large-scale hard gear boxes are used for cement ball mills, rubber machinery, mine machinery, metallurgical machinery, etc. The outstanding quality products and professional service are highly praised by our domestic and overseas clients.
Presentation: www.acestarcn.equip4ship.com
Address: China, Huaian, JIANGSU, 223001 Room 001, Floor 19B, North Building of Jinma Plaza
Rated pull (1st layer) - 5 to 30 T
Configuration - Single or double
Chain size - 16mm to 160 mm
Clutch - Manually operated
Brake - Manually operated band brake
Control - Local and/or remote control
Configuration: - Single Drum
Rated pull: - 10 to 80 tonnes
Wire speed:- Up to 30 m/min
Control:- Local and/or remote control
Configuration:- Single/double Drum
Rated pull:- 10 to 50 tonnes
Wire speed:- Up to 30 m/min
Control:- Local and/or remote control
Configuration: Vertically mounted
Warping head made of cast steel
Rated pull 1st. Layer: 3-20 tonnes
Maximum speed: up to 20m/min
Local and/or remote control
Configuration; single or multi drum
With or without warping end
Polypropylen or steel wire rope
Rated pull: 8-40 tonnes
Manual or hydraulic operated clutch
Manual or hydraulic failsafe brake
Local and/or remote con
Single or double drum
Fibre rope drum or steel wire rope drum
Rated pull first layer from 5 to 200 tonnes
Wire speed to suit operational requirements
Hydraulic operated clutch
Manually operated band brake
Configuration: - Single or double drum with/without warping end
Ratet pull (1 st layer): 5 to 30 tonnes
Brake holding: 1.5 times the ratet pull (static, first layer)
Wire speed:- Up to 20 m/min
Clutch: - Manually opera
Configuration:- Single Drum
Rated pull: - 2 to 15 tonnes
Wire speed: - Up to 30 m/min
Control: - Local and/or remote control

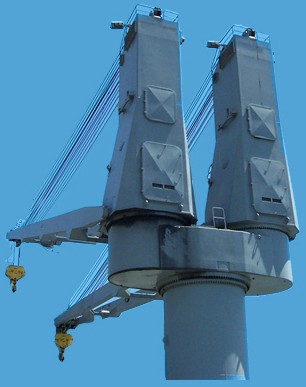

Max Working Radius: 10-30m
Min Working Radius: 3-8m
Hoisting Speed: 0-15m/min
Slewing Speed: 0.4-1 r/min
Luffing Time: 80-140s
Slewing angle: 270°-360°
Allowable Gradient: Tansverse: 5°/ Longitudinal: 2°

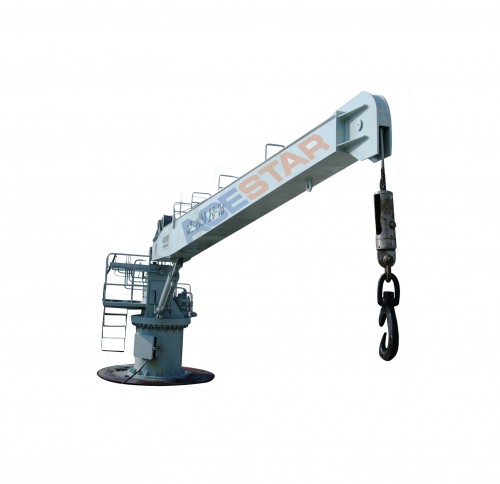

Max Working Radius: 5-30m
Min Working Radius: 1.4-7.5m
Hoisting Speed: 0-15m/min
Slewing Speed: 0.4-1 r/min
Luffing Time: 60-140s
Hoisting Height: 30-50m
Slewing angle: 360°
Slewing Radius: 5-30m
Hoisting Speed: 300X15 KNxm/min – 600X 9.5KNxm/min (single)
580X15 KNxm/min – 1200X9.5KNxm/min(twin)
Lowering Speed: 25-60m/min
Luffing Time: 50-110s
Slewing Speed: 0.25-
