Schwarze-Robitec GmbH COLOGNE, Germany
Decades of experience in developing, manufacturing and maintenance of tube cold bending machines; Qualified, motivated and customer orientated staff is the basis for technological advantage and quality; Quality assurance through ISO 9001 certification (TUV certificate); Training company for technical and commercial professions; Continuous new developments and usage of most advanced machinery is a matter of course; Employees: 130; 43,000 m² surface area and 12,000 m² of workshop area; Competence by the sale of over 2,400 tube bending machines;
Presentation: www.schwarze-robitec.equip4ship.com
Address: Germany, COLOGNE, 51109 Olpener Str. 460-474
Contact person: Managing Director Bert Zorn ,e-mail, website

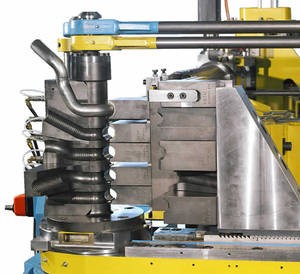

5-Stack Bending Tool
Send enquiry
Loading of one CNC 60 E TB MR for the exhaust manifold production.
CNC 60 HD Hydraulic Tube Cold Bending Machine, CNC multi-axis control with tube positioning...
Send enquiry
Ø tube diameter: 16/60 mm
Max. Wall thickness: 5,5 mm
Min./Max. Bending radius: 20/200 mm
Max. tube length: 2,000 mm
Installation: 25 kW
Application: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainless steel
Max. Wall thickness: 5,5 mm
Min./Max. Bending radius: 20/200 mm
Max. tube length: 2,000 mm
Installation: 25 kW
Application: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainless steel
CNC 60 HD MW Tube profile cold bending machine with multi-stack bending tools for Short set-up...
Send enquiry
Ø tube diameter: 16/60 mm
Max. Wall thickness: 5,5 mm
Min./Max. Bending radius: 30/ 150 mm
Max. tube length: 2,000 mm
Installation: 25 kW
Application: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainless steel
Max. Wall thickness: 5,5 mm
Min./Max. Bending radius: 30/ 150 mm
Max. tube length: 2,000 mm
Installation: 25 kW
Application: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainless steel
CNC 80 HD Tube cold bending machine with tube positioning device and bend table drive
Send enquiry
Ø tube diameter: 25 /89 mm
Max. Wall thickness: 7,6 mm
Min./Max. Bending radius: 30/ 290 mm
Max. tube length: 2,000 mm
Installation: 25 kW
Application: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainless steel
Max. Wall thickness: 7,6 mm
Min./Max. Bending radius: 30/ 290 mm
Max. tube length: 2,000 mm
Installation: 25 kW
Application: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainless steel
CNC 80 HD MW Tube cold bending machine with multi-stack bending tools for Short set-up times...
Send enquiry
Ø tube diameter: 25 /89 mm
Max. Wall thickness: 7,6 mm
Min./Max. Bending radius: 50 / 225 mm
Max. tube length: 2,000 mm
Installation: 25 kW
Application: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainless steel
Max. Wall thickness: 7,6 mm
Min./Max. Bending radius: 50 / 225 mm
Max. tube length: 2,000 mm
Installation: 25 kW
Application: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainless steel
CNC 100 HD Tube and profile cold bending machine with tube positioning device and bend table drive
Send enquiry
Ø tube diameter: 25 /114,3 mm
Max. Wall thickness: 8,6 mm
Min./Max. Bending radius: 50 / 350 mm
Max. tube length: 3,000 mm
Installation: 25 kW
Application: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainless steel
Max. Wall thickness: 8,6 mm
Min./Max. Bending radius: 50 / 350 mm
Max. tube length: 3,000 mm
Installation: 25 kW
Application: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainless steel
CNC 100 HD MW Tube cold bending machine with multi-stack bending tools for Short set-up times...
Send enquiry
Ø tube diameter: 25 /114,3 mm
Max. Wall thickness: 8,6 mm
Min./Max. Bending radius: 75 / 300 mm
Max. tube length: 3,000 mm
Installation: 25 kW
Application: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainless steel
Max. Wall thickness: 8,6 mm
Min./Max. Bending radius: 75 / 300 mm
Max. tube length: 3,000 mm
Installation: 25 kW
Application: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainless steel
CNC 165 HD Tube and profile cold bending machine with tube positioning device and bend table drive
Send enquiry
Ø tube diameter: 44 /168,3 mm
Max. Wall thickness: 11 mm
Min./Max. Bending radius: 70 / 600 mm
Max. tube length: 4,000 mm
Installation: 40 kW
Application samples: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainles
Max. Wall thickness: 11 mm
Min./Max. Bending radius: 70 / 600 mm
Max. tube length: 4,000 mm
Installation: 40 kW
Application samples: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainles
CNC 165 HD MW Tube cold bending machine with multi-stack bending tools for Short set-up times...
Send enquiry
Ø tube diameter: 44 /168,3 mm
Max. Wall thickness: 11 mm
Min./Max. Bending radius: 90 / 425 mm
Max. tube length: 4,000 mm
Installation: 40 kW
Application samples: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainles
Max. Wall thickness: 11 mm
Min./Max. Bending radius: 90 / 425 mm
Max. tube length: 4,000 mm
Installation: 40 kW
Application samples: flanged tubes, flared tubes with loose flanges
Material: Steel, CuNiFe, stainles
CNC 220 HD Tube and profile cold bending machine with tube positioning device and bend table drive
Send enquiry
Ø tube diameter: 60/ 219,1 mm
Max. Wall thickness: 12,7 mm
Min./Max. Bending radius: 100 / 800 mm
Max. tube length: 5,000 mm
Installation: 40 kW
Application samples: flanged tubes,flared tubes with loose flanges
Material: Steel,CuNiFe,stainles
Max. Wall thickness: 12,7 mm
Min./Max. Bending radius: 100 / 800 mm
Max. tube length: 5,000 mm
Installation: 40 kW
Application samples: flanged tubes,flared tubes with loose flanges
Material: Steel,CuNiFe,stainles
CNC 220 HD MW Tube cold bending machine with multi-stack bending tools for Short set-up times...
Send enquiry
Ø tube diameter: 60/ 219,1 mm
Max. Wall thickness: 12,7 mm
Min./Max. Bending radius: 120 / 550 mm
Max. tube length: 5,000 mm
Installation: 40 kW
Application samples: flanged tubes,flared tubes with loose flanges
Material: Steel,CuNiFe,stainles
Max. Wall thickness: 12,7 mm
Min./Max. Bending radius: 120 / 550 mm
Max. tube length: 5,000 mm
Installation: 40 kW
Application samples: flanged tubes,flared tubes with loose flanges
Material: Steel,CuNiFe,stainles
CNC 265 HD Tube and profile cold bending machine with tube positioning device and bend table drive
Send enquiry
Ø tube diameter: 76/ 273 mm
Max. Wall thickness: 15,1 mm
Min./Max. Bending radius: 150 / 1,000 mm
Max. tube length: 5,000 mm
Installation: 40 kW
Application samples: flanged tubes,flared tubes with loose flanges
Material: Steel,CuNiFe,stainles
Max. Wall thickness: 15,1 mm
Min./Max. Bending radius: 150 / 1,000 mm
Max. tube length: 5,000 mm
Installation: 40 kW
Application samples: flanged tubes,flared tubes with loose flanges
Material: Steel,CuNiFe,stainles
CNC 265 HD MW Tube cold bending machine with multi-stack bending tools for Short set-up times...
Send enquiry
Ø tube diameter: 76/ 273 mm
Max. Wall thickness: 15,1 mm
Min./Max. Bending radius: 150 / 1,000 mm
Max. tube length: 5,000 mm
Installation: 40 kW
Application samples: flanged tubes,flared tubes with loose flanges
Material: Steel,CuNiFe,stainles
Max. Wall thickness: 15,1 mm
Min./Max. Bending radius: 150 / 1,000 mm
Max. tube length: 5,000 mm
Installation: 40 kW
Application samples: flanged tubes,flared tubes with loose flanges
Material: Steel,CuNiFe,stainles
CNC 320 HD Tube and profile cold bending machine with tube positioning device and bend table drive
Send enquiry
Ø tube diameter: 89/ 323,9 mm
Max. Wall thickness: 17,5 mm
Min./Max. Bending radius: 200/ 1,250 mm
Max. tube length: 6,000 mm
Installation: 40kW
Application samples: flanged tubes,flared tubes with loose flanges
Material: Steel,CuNiFe,stainles
Max. Wall thickness: 17,5 mm
Min./Max. Bending radius: 200/ 1,250 mm
Max. tube length: 6,000 mm
Installation: 40kW
Application samples: flanged tubes,flared tubes with loose flanges
Material: Steel,CuNiFe,stainles
CNC 350 HD Tube and profile cold bending machine with tube positioning device and bend table drive
Send enquiry
Ø tube diameter: 114/ 355 mm
Max. Wall thickness: 19,1 mm
Min./Max. Bending radius: 200/ 1,500 mm
Max. tube length: 6,000 mm
Installation: 40 kW
Application samples: flanged tubes,flared tubes with loose flanges
Material: Steel,CuNiFe,stainles
Max. Wall thickness: 19,1 mm
Min./Max. Bending radius: 200/ 1,500 mm
Max. tube length: 6,000 mm
Installation: 40 kW
Application samples: flanged tubes,flared tubes with loose flanges
Material: Steel,CuNiFe,stainles
CNC 420 HD Tube and profile cold bending machine with tube positioning device and bend table drive
Send enquiry
Ø tube diameter: 114/ 419 mm
Max. Wall thickness: 21,4 mm
Min./Max. Bending radius: 200/ 1,750 mm
Max. tube length: 6,000 mm
Installation: 40 kW
Application samples: flanged tubes,flared tubes with loose flanges
Material: Steel,CuNiFe,stainles
Max. Wall thickness: 21,4 mm
Min./Max. Bending radius: 200/ 1,750 mm
Max. tube length: 6,000 mm
Installation: 40 kW
Application samples: flanged tubes,flared tubes with loose flanges
Material: Steel,CuNiFe,stainles
SR 60 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis...
Send enquiry
Ø tube diameter: 16/60 mm
Max. Wall thickness: 5,5 mm
Min./Max. Bending radius: 20/ 200 mm
Max. tube length: 2,000 mm
Installation: 11kW
Application samples: High-Pressure pipelines (large wall thicknesses)
Equipment: rotating bend table,boost
Max. Wall thickness: 5,5 mm
Min./Max. Bending radius: 20/ 200 mm
Max. tube length: 2,000 mm
Installation: 11kW
Application samples: High-Pressure pipelines (large wall thicknesses)
Equipment: rotating bend table,boost
SR 80 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis...
Send enquiry
Ø tube diameter: 25/ 89 mm
Max. Wall thickness: 7,6mm
Min./Max. Bending radius: 30/ 290mm
Max. tube length: 2,000 mm
Installation: 18,5kW
Application samples: High-Pressure pipelines(large wall thicknesses)
Equipment: rotating bend table,boost
Max. Wall thickness: 7,6mm
Min./Max. Bending radius: 30/ 290mm
Max. tube length: 2,000 mm
Installation: 18,5kW
Application samples: High-Pressure pipelines(large wall thicknesses)
Equipment: rotating bend table,boost
SR 100 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis...
Send enquiry
Ø tube diameter: 25 / 114,3 mm
Max. Wall thickness: 8,6 mm
Min./Max. Bending radius: 50 / 500 mm
Max. tube length: 3,000 mm
Installation: 18,5 kW
Application samples: High-Pressure pipelines
Equipment: rotating bend table, booster unit
Max. Wall thickness: 8,6 mm
Min./Max. Bending radius: 50 / 500 mm
Max. tube length: 3,000 mm
Installation: 18,5 kW
Application samples: High-Pressure pipelines
Equipment: rotating bend table, booster unit
SR 165 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis...
Send enquiry
Ø tube diameter: 44/ 168,3 mm
Max. Wall thickness: 11mm
Min./Max. Bending radius: 70/ 600mm
Max. tube length: 3,000 mm
Installation: 22kW
Application samples: High-Pressure pipelines(large wall thicknesses)
Equipment: rotating bend table,boost
Max. Wall thickness: 11mm
Min./Max. Bending radius: 70/ 600mm
Max. tube length: 3,000 mm
Installation: 22kW
Application samples: High-Pressure pipelines(large wall thicknesses)
Equipment: rotating bend table,boost
SR 220 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis...
Send enquiry
Ø tube diameter: 60 / 219,1 mm
Max. Wall thickness: 12,7 mm
Min./Max. Bending radius: 100 / 800 mm
Max. tube length: 3,000 mm
Installation: 22 kW
Application samples: High-Pressure pipelines
Equipment: rotating bend table, booster unit, tube s
Max. Wall thickness: 12,7 mm
Min./Max. Bending radius: 100 / 800 mm
Max. tube length: 3,000 mm
Installation: 22 kW
Application samples: High-Pressure pipelines
Equipment: rotating bend table, booster unit, tube s
SR 265 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis...
Send enquiry
Ø tube diameter: 76 / 273 mm
Max. Wall thickness: 15,1 mm
Min./Max. Bending radius: 150 / 1,250 mm
Max. tube length: 3,000 mm
Installation: 30 kW
Application samples: High-Pressure pipelines
Equipment: rotating bend table, booster unit, tube s
Max. Wall thickness: 15,1 mm
Min./Max. Bending radius: 150 / 1,250 mm
Max. tube length: 3,000 mm
Installation: 30 kW
Application samples: High-Pressure pipelines
Equipment: rotating bend table, booster unit, tube s
SR 320 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis...
Send enquiry
Ø tube diameter: 89 / 323,9 mm
Max. Wall thickness: 17,5 mm
Min./Max. Bending radius: 200 / 1,500 mm
Max. tube length: 3,000 mm
Installation: 30 kW
Application samples: High-Pressure pipelines
Equipment: rotating bend table,booster unit, tube
Max. Wall thickness: 17,5 mm
Min./Max. Bending radius: 200 / 1,500 mm
Max. tube length: 3,000 mm
Installation: 30 kW
Application samples: High-Pressure pipelines
Equipment: rotating bend table,booster unit, tube
SR 350 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis...
Send enquiry
Ø tube diameter: 114 /355 mm
Max. Wall thickness: 19,1 mm
Min./Max. Bending radius: 200 / 1,750 mm
Max. tube length: 3,000 mm
Installation: 30 kW
Application samples: High-Pressure pipelines
Equipment: rotating bend table, booster unit, tube s
Max. Wall thickness: 19,1 mm
Min./Max. Bending radius: 200 / 1,750 mm
Max. tube length: 3,000 mm
Installation: 30 kW
Application samples: High-Pressure pipelines
Equipment: rotating bend table, booster unit, tube s
SR 420 Electro-hydraulic Tube Cold Bending Machine for large wall thicknesses, CNC single-axis...
Send enquiry
Ø tube diameter: 114 / 149 mm
Max. Wall thickness: 21,4 mm
Min./Max. Bending radius: 250 / 2,000 mm
Max. tube length: 3,000 mm
Installation: 30 kW
Application samples: High-Pressure pipelines
Equipment: rotating bend table, booster unit, tube
Max. Wall thickness: 21,4 mm
Min./Max. Bending radius: 250 / 2,000 mm
Max. tube length: 3,000 mm
Installation: 30 kW
Application samples: High-Pressure pipelines
Equipment: rotating bend table, booster unit, tube
